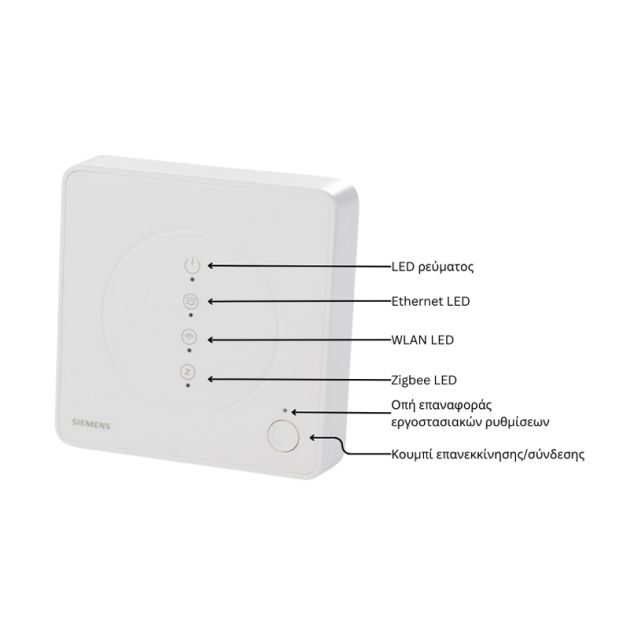

Hub Zigbee GTW100ZB Connected Home S55772-T109

Room Τemperature Controller Bus Coupler KNX 6109/28-500 80563

Push-button coupling unit KNX, object room temperature controller Room temperature controller with CO2/moisture sensor Heating/cooling operation Control element with room temperature controller function and CO2/moisture/air pressure sensor.

For activating heating, ventilation and fan coil actuators.

With universal input with: - max. of 5 binary inputs - 4 binary inputs and 1 analogue input for activating sensors with external power supply 1-10 V/0-10 V - 2 binary inputs and 1 analogue input for activating sensors with external power supply 1-10 V/0-10 V and an external temperature sensor PT1000 / T6226.

With display of set-value temperature. Master/slave configuration. With base-load operation. The bus can be connected via enclosed terminal block. Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%. Control element: Switch contacts, Display elements: LCD showing operation mode and temperature., Connections: , KNX-line: Bus connection terminal Rated voltage: 24 V, Inputs: 5, Polling voltage: , Binary inputs, presence and/or window contact Rated current: 5 mA, Control/Signal outputs: 1, 0-10 V (passive) Protection class (Device): IP 20, Temperature range (Device): -5 °C to 45 °C, For software and description please check the current Online-Catalogue., From ETS 4: commissioning via native ETS application
