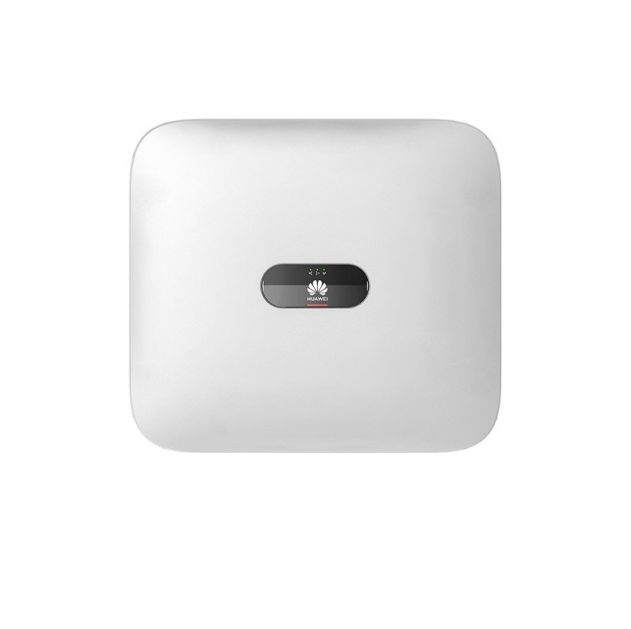

Huawei Solar Panel Inverter Single Phase 4000W SUN2000-4KTL-L1 01075348

With the Huawei SUN-2000-4KTL-L1 inverter, electricity from your own PV system can be used. The component converts direct current to alternating current and thanks to its high degree of efficiency, users benefit from increased efficiency. The dimensions of the Huawei SUN-2000-4KTL-L1 inverter are 365 x 365 x 156 mm, which means that the component is extremely compact. With a weight of 12 kg, it can be assembled by a single person. The Huawei SUN-2000-4KTL-L1 inverter has a battery connection and supports RS485 communication to connect to a smart power meter or similar. A battery can be connected either directly with the initial installation or afterwards; thanks to the plug & play connection, the effort is very low. In any case, integration into the system via the plug-in connections is extremely easy. With the help of the app, commissioning is no problem in minutes.

The advantages of the Huawei SUN-2000-4KTL-L1 inverter are multiple and not only extend to the battery connection, but an overvoltage protection (type 2 for AC and DC) is already integrated. Additionally, the component features two independent MPP trackers and operating noise is pleasantly quiet thanks to convection air cooling. The rated power of the Huawei SUN-2000-4KTL-L1 inverter is specified as 4,000 Watts, the voltage range extends from 90 to 560 volts. During operation, the inverter achieves a maximum efficiency of 98.4%, so it is suitable for the efficient operation of the system. The European efficiency is 97.5%.

• Single-phase inverter with a power of 4,400VA
• 2 independent MPP trackers
• 1 battery connection (plug & play)
• Efficiency up to 98.4%
• Communication via WLAN, Ethernet * and 4G *
• RS485 for smart power sensor & battery
• AC and DC surge protection
