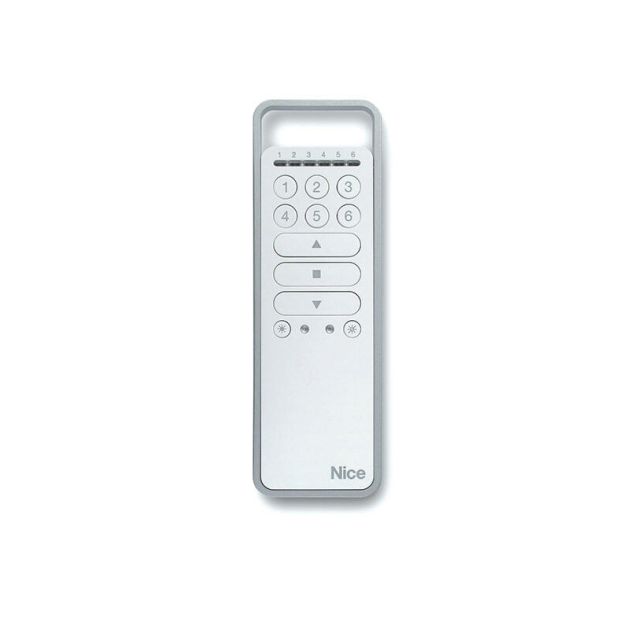

Wireless Controller 6 Channels ON-OFF P6S P6S

Systemlink KNX Weather Station with GPS Signal TG053A

Integrated GPS signal receiver for determining time and position. Calculation of the position of the sun (azimuth and altitude) from the coordinates of position and time. Direct connection of the KNX bus via the bus terminal. Additional voltage 12 ... 40 V DC or 12 ... 28 V AC, max. 185 mA at 12 V DC. The auxiliary voltage supply is fed via a pair of white / yellow bus line conductors. Standard integrated mounting on a mast or wall.Wind speed measurement using heated sensors, measuring range 0 ... 35 m / s. Brightness sensor, measuring range 0 ... 150 kLux.

Shading control for up to 6 facades with tracking of slats and shadow edges. Outdoor temperature sensor, measuring range -30 degrees C to +80 degrees C. Heated precipitation monitor. Sending all measured values via bus. All values can be used to control limit-dependent switching outputs. The weekly timer switches up to 4 different time periods per day of the week.

The calendar timer can also be used to switch between 3 time periods spread over the year. 8 logical AND and OR links for up to 4 input objects. Number of communication objects: 254
