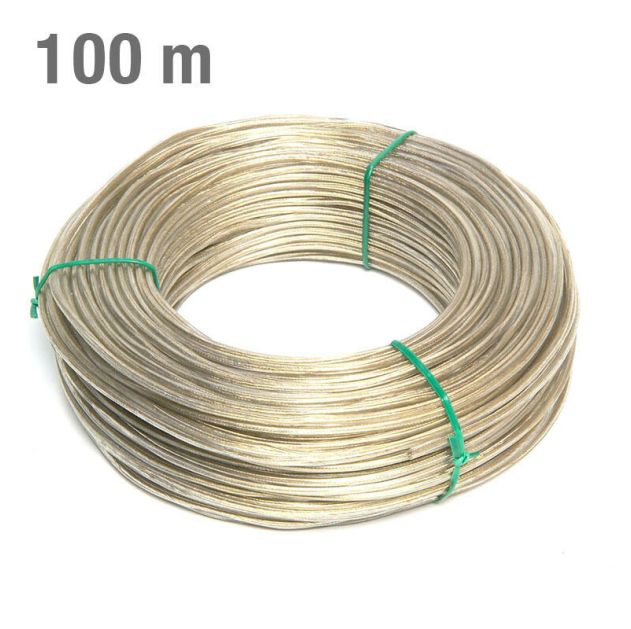

Silver Wire Rope 3.5mm 100m 06-04-0002

Edision Modulator HDMI  Xtend 07-06-0008

The Digital FULL HD modulator EDISION HDMI Modulator Xtend, has RF-in Mixing INPUT and INTEGRATED IR CONTROL SYSTEM, via coaxial cable. In addition, it provides the ability to display the HDMI source on the main TV locally, through its HDMI-loop out. With an innovative design, as a receiver for mounting on a horizontal surface, it accepts signal input from any HDMI source (Terrestrial & Satellite decoder, cameras, DVD, DVR, etc.) up to 1080p @ 30FPS and modulates it to output in MPEG4 Ground DVB Ψ -T FULL HD signal, with output option in VHF or UHF band. Provides excellent signal quality at its output, combined with reliable operation and consistent performance, in every installation device. It has a USB port for CONFIG DATA operation. FAST PRE-CONFIG OPERATION provides 50 READY SELECTED IDs, for very easy programming, when we have more than 1 device in the same installation. Its built-in IR EDI-Rx control system allows the transfer of signal / remote control commands, from the HDMI source of the point of the main TV, to the point of the second TV, through the coaxial cable of the existing installation (IR over Coax).

Specifications:

• Digital single channel HDMI modulator, with built-in IR CONTROL SYSTEM (via coaxial cable)
• HDMI-loop OUTPUT, for viewing content and locally on TV with HDMI input, at the point of the modulator
• DESIGN suitable for horizontal placement (as a receiver), with screen, keys and indicators on the front
• RF-in INPUT for RF signal mixing
• FAST PRE-CONFIG function (50 ready-made and selectable IDs) and additional CONFIG DATA function (USB export, easy upload to Modulator)
• Signal INPUT: HDMI
• Signal OUTPUT: Terrestrial digital DVB-T VHF III (174-230 MHZ) & UHF (470-862 MHZ) MPEG4 signal. Up to FULL HIGH DEFINITION (1080i, up to 1080p @ 30FPS)
• VHF Frequency Range (CH. 5-12) & UHF (CH. 21-69)
• RF output signal level: Factory 90 dbμV, with option to increase to + 6dbμV or decrease to -14dbμV
• MER:> 35dB at maximum output level
• Symbol Rate: Up to 31,668 MBPS
• Bandwidth: 7MHZ, 8MHZ
• Audio Coding: MPEGI L1 / 2, MPEGII LII, AAC LC, HE-AAC v1 / v2 (2-CH)
• CPU: 200MHz 32Bits RISC
• DDRII 16bit 512Mbits Memory (Built-in) & NOR Flash 32Mbit
• HDMI v1.4a input
• USB type: USB 2.0 HOST, Fat32 support
• 4-digit LED display
• Power supply: Input: 100 ~ 240V AC, Output: DC 5V / 2.0A
• Power consumption in normal operation: 10W maximum
• Dimensions: 125x145x35 mm
• Black color
• Warranty: Two [2] years

Main TV equipment

• HDMI Modulator Xtend
• Jack cable in IR Tx
• Power supply 5V / 2.0A EU / UK universal

Second TV equipment

• IR Control System EDI-Rx
• Jack cable in IR Rx
• USB to DC cable (5V)
