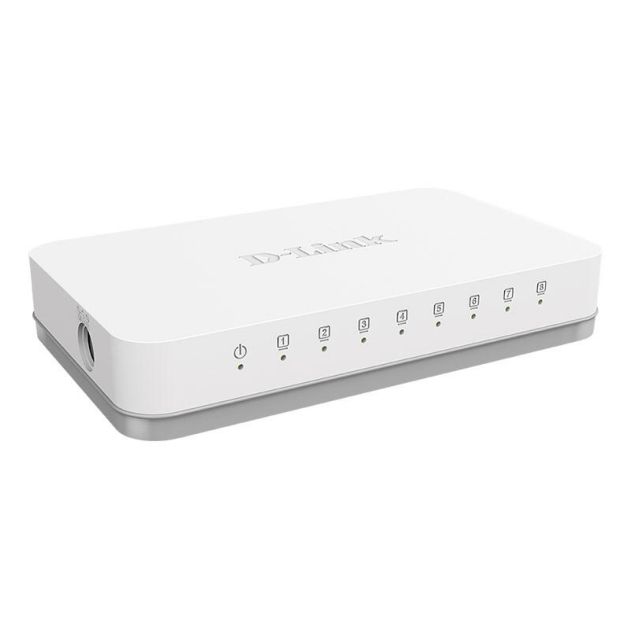

D-LINK Desktop Switch with 8 Gigabit Ethernet Ports 00130798/215-0027-0131379

Transmitter receiver for Wireless Signal Transfer Audio/Video 5.8GHz and IR 7167 A/V LINK TX/RX 12-27-00

Product description:

Digidom AV 5.8 GHz (Transmitter and Receiver) Audio/Video 5,8GhZ and IR control commands. Up to 8 sets per area, thanks to the 8-channel confiuration.

Technical features:

Transmitter (TX):
-Channel / Frequency (NΊ / MHz)
1 / 5733 5 / 5809
2 / 5752 6 / 5828
3 / 5771 7 / 5847
4 / 5790 8 / 5866
- Output dBm: 10
- Video Input Level Vpp:1
- Audio Input Level Vpp:1
- Video Input Impedance ohm:75
- Audio Input Impedance ohm:600
- Power supply Vdc, 300 mA 9
- Consumption mA: 150
- Dimensions mm: 129 x 113 x 36

Receiver (RX):
- Output Level A/V: A/V Vpp 1
- Receiver Sensitivity dBm: -85
- Supply Voltage Vdc, 300 mA 9
- Power ConsumptionmA: 270
- Single-Channel IR Transmission Frequency MHz 433,99
- Dimensions mm 129 x 113 x 36

Package includes:
1 Χ Transmitter (TX)
1 Χ Receiver (RX)
2 Χ 9V Power Adaptor
1 Χ Infrared Extender
2 Χ Adapters A/V
1 Χ User Manual
