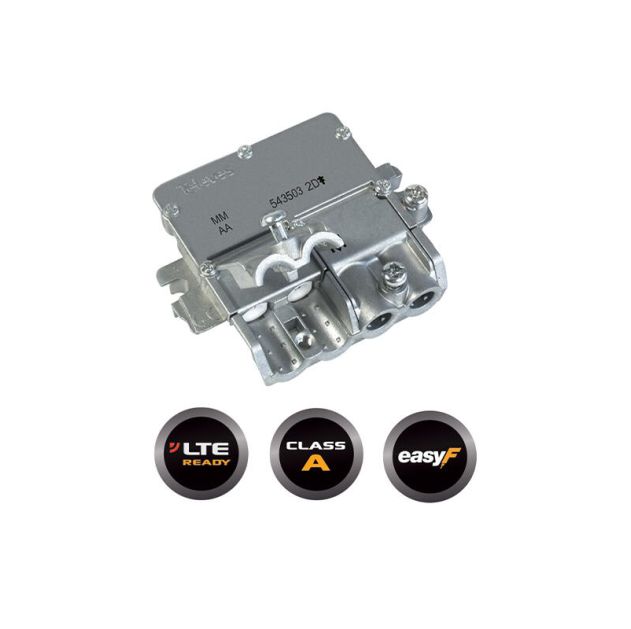

2 Ways Splitter 543503 Mini-Easy-F Class A 12-18-0007

Easy-F Line Amplifier AGCVHF-UHF 560542 PicoKom LTE 12-14-0010

The LTE - AGC line-amplifier 560542 of TELEVES, is Plug & Play! No adjustment is required, as it has a built-in advanced AGC system that automatically adjusts the signal output, always adjusting it to the correct level, thus maintaining all the parameters for trouble-free reception. It has DC (on-off) output for powering HD B.O.S.S. or preamplifiers / active dipoles.

Specifications:

It is designed for VHF / UHF amplification, with 4G-LTE frequency cut-offs and has a built-in switching power supply. The amplification is done in two independent stages, one for UHF and one for VHF, with 105dbμV output in VHF and UHF.

• 4G-LTE frequency cut-off.
• 2 outputs.
• EASY-F connections with the advantages of F and caliper.
• Frequency range: MHz 47-400 470-790
• Automatically adjustable VHF / UHF dB 10/20 gain
• A.G.C. with automatic signal adjustment dB 0-20
• Noise dB VHF: 5.0 UHF: 4.5
• Power supply VAC 196-264
• Network frequency 220v: Hz 50/60
• Preamplifier power supply: VDC 12V, max.mA 150
• Consumption: 3.7 W
• Degree of protection: IP20
• Operating temperature: -5 ... + 45 C.
• Dimensions: 90 X 68 X 28 mm
• Warranty: 2 years
