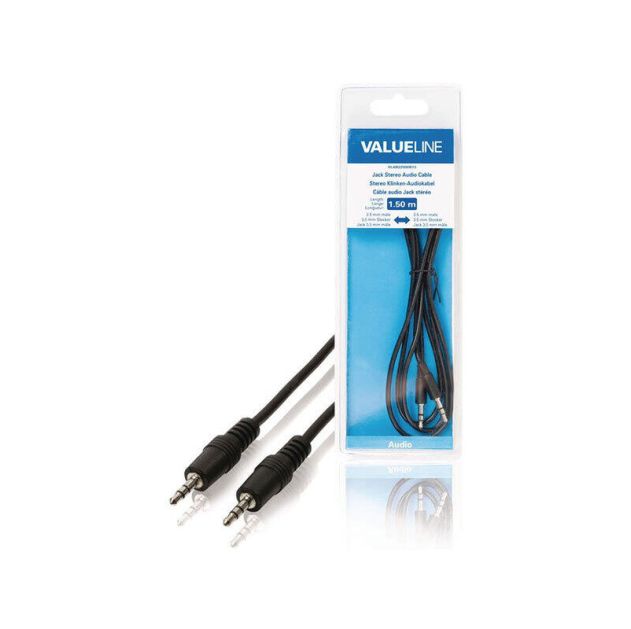

3.5mm Male Stereo Audio Cable - 3.5mm Male Stereo 1.5m 140-5264

Alarm Remote Controller Set ACS 114R 128008

The ACS-114R wireless dual-channel multi-functional receiver, operated in combination with two hand-held transmitters at the touch of a button, provides the remote control of each electronic device:

• Electric Gates
• Sliding doors
• Electromagnetic locks
• Automatic bars
• Electric Curtains
• Lighting outfits
• Activation / deactivation of alarm systems
• Remote control panels can be used as a personal panic button on security systems to generate any type of alarm.

Two independent channels.

Five modes of operation of each receiver channel:

Panic Button (Security) function

Activation period (1-300 sec)

Activation Mode (ON / OFF)

Hold Mode (Continuous)

Panic Button Function (Security)

Input power: 12-16VDC

Stand-by: 15mA / 12V

Active operation: 39mA / 12V

Outdoor shooting range: up to 500m

Operating frequency: 433.92 ± 50kHz

Emitted power: ≤10mW

Memory capacity: 330 codes

Panic button alarm period: 3sec

Warm-up period: 0.5sec

Dry relay contact: DC30V / 1.0A; DC60V / 0.3A? AC125V / 0.5A

Panic button operation protection opening: intrusion switch

Last event memory in panic button mode: 30 minutes

Temperature range operation: -20 ° C + 50 ° C

Temperature range storage: -40ºC + 80ºC

Dimensions: 85 mm x 40 mm x 20 mm
