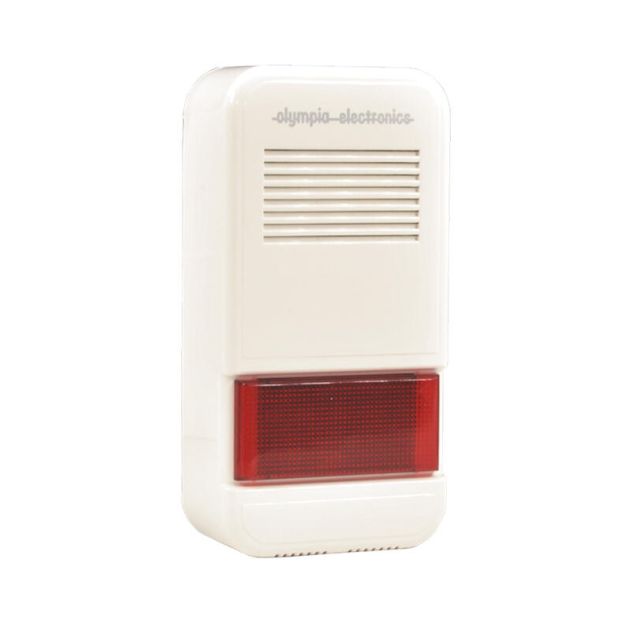

Beacon Siren BS-554 12/24V for BS-620 921554000

Exeternal Beam Detector 30m ALBI-301408 980301408

BEAM range up to 30m, with 8 beams.

• Multiple interactive infrared beams
• Detection by interrupting 2 consecutive links
• NC / NO relay output
• Easy alignment with visual LED and audible buzzer
• Cover made of high quality aluminum alloy
• Resistant to rain, fog, snow and frost
• Digital frequency conversion.
• CPU microprocessor
• Very good isolation of external interference.
• AGC full digital circuit design
• Very good isolation of false alarms.
• Variable horizontal angle by 180 °
• Maximum detection radius: 30m
• Height: 76 cm
• Number of Beams: 4 spokes
• Response speed 40msec
• Alarm output: NO / NC
• Tamper NC / NO. 1B output contact, DC26V / 0.5AMax.
• Power and voltage DC10-18V
• Dimensions 140H x 40W x 45Bmm
• Operating current 30-90mA max
• Operating temperature: -25 ℃ -55 ℃
