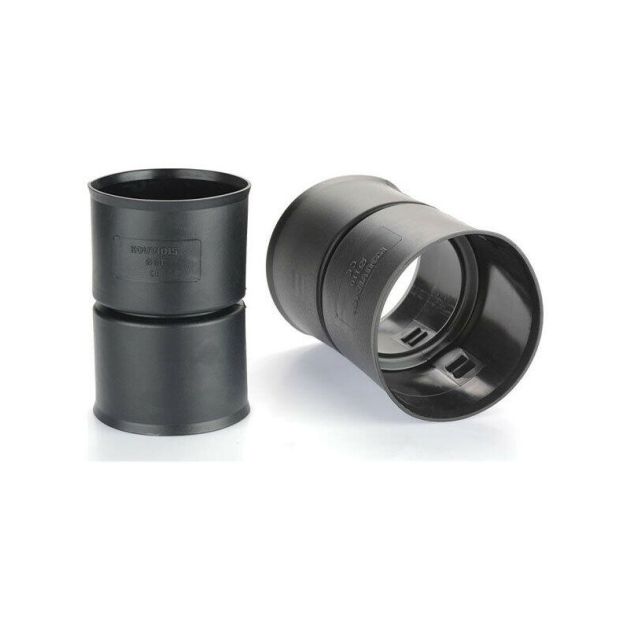

Connection Coupler for Double Wall Pipes with Hook Φ200 Geonflex 6101200

Corrugated Medium Type Pliable Conduit Φ20 Light Grey with Antimicrobial Technology Mediflex 2044120

MEDIFLEX AM conduit with antimicrobial technology was developed in 2011 and presented in Light + Building fair 2012 in Frankfurt, Germany. MEDISOL AM conduit is a part of MEDISOL AM – MEDIFLEX AM conduit system for cable management and protection. It is a pan European patent that was developed by KOUVIDIS as it has the property to reduce up to 99% of the most dangerous pathogenic microbes (MRSA, E-coli) within 24 hours. Antimicrobial efficacy is tested according to the International Standard ISO 22196 and is controlled by the British laboratory BIOCOTE.

APPLICATION FIELD

Ideal for sanitary areas (hospitals, medical centers & laboratories) and public spaces (schools, nursery homes/rooms & sport centers) and areas requiring implementation of HACCP & ISO 22000 systems such as food industries/warehouses, restaurants, etc.

APPLICATION STAND:EN 61386.22, ISO 22196

INSTRUCTIONS FOR COMPLIANCE:2014/35/EE (LVD), 2011/65/EU(RoHS), 98/8/EU(BPD)

COLOR:RAL 9003 White

NOMINAL DIAMETER:Outer (DN/OD)

TIGHTNESS DEGREES:min IP 65

PROPERTIES

1) Resist the growth of bacteria by up to 99% within 24 hours

2) Antimicrobial efficacy is tested according to the International Standard ISO 22196 and is controlled by the British laboratory BIOCOTE

3) Marked using embossed printing and packed with 100% recyclable polyethylene film including safety straps and an informative red color label

4) High impact (2J) resistance (medium type) in low temperature of -25oC

5) High ingress protection (min IP65), when connected with MEDISOL AM coupler

6) Not attractive to rodents

CHARACTERISTICS

Resistance to compression: 750Nt/5cm

Resistance to impact: 2J (at -25oC)

Lower temperature range: -25oC

Upper temperature range: +60oC

Resistance to bending: Pliable

Electrical characteristics: With electrical insulated characteristics

Protection against ingress of solid objects: min IP65

Protection against ingress of water: min IP65

Resistance against corrosion: Not applicable

Tensile strength: None declared

Resistance to flame propagating: Non flame propagating

Suspended load capacity: None declared
