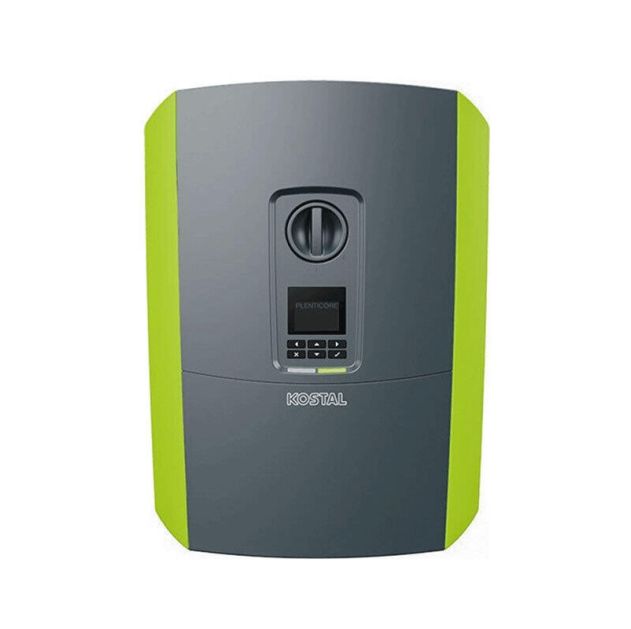

Solar Panel Inverter 3-Phases 10kW Plenticore Plus 8.5 10335958

Smart Rail-Mounted Switch 6 Channel Wi-Fi 230 VAC / 6x10A SW-6CHL

The rail-mounted switch SW-6CHL (smart switch / 6 channel) is a cutting-edge product of the MASTER Smart Home line, suitable for controlling and managing (on-off) your lighting and electrical appliances. Installation of the SW-6CHL on the electrical panel enables ON/OFF capabilities in 6 different sections of an electrical installation. Its high-definition liquid crystal display, the local and remote control of lighting or electrical appliances combined with data visualization make it unique. Automate, manage and control the state of your lighting and appliances in your home and business environment, operating locally via buttons and remotely over internet or Wi-Fi using smartphone, tablet or PC with the MASTER Smart Home application.

Features

• Visualization, control and management of lighting and electrical appliances (on - off)
• User-friendly, easy-to-use interface
• Works with Google Assistant and Amazon Alexa
• Secure connection to Wi-Fi
• No hub/gateway is required
• Timer function
• Time-schedules
• Maximum economy and comfort through smart scenes
• Low implementation cost in existing or new installations
• Remote control via Wi-Fi and Internet with the “MASTER Smart Home” app for smartphone, tablet and PC and local control via button

Technical Specifications

RAIL-MOUNTED SWITCH (6 MODULE): 6 Channel (Relay)
OPERATING VOLTAGE: 180 – 230V AC
OPERATING FRREQUENCY: 50Hz
OUTPUT POWER PER CHANNEL: 2300W / 10A max
OUTPUT POWER BOOST: The output power of the product can be extended by adding the corresponding power relay according to the electric load
STAND BY CONSUMPTION: ≤ 1W
TEMPERATURE CONDITIONS:
- of operation -20°C to +50°C
- of storage -20°C to +60°C
WIRE SIZE: ∅0.5 mm to ∅3.5 mm
MOUNTING: Din-rail mounting 35x7.5mm (DIN 45277)

Control:

• Local: ON/OFF from the device
• Button: With one or more parallel buttons - (ON/OFF) with instant push
• Remote: With the MASTER Smart Home app for smartphones or tablets over Wi-Fi or Data


INSTALLATION INSTRUCTIONS:

• To prevent any accidents, installation must be carried out by qualified personnel
• Improper installation or use can result in electric shock or fire
• Install the product according to the electrical draft of installation
