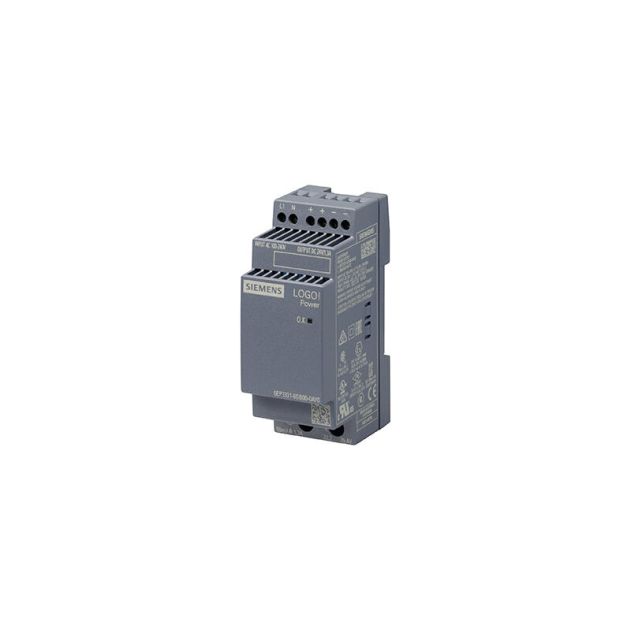

LOGO! Power Controlled Supply 24VDC/1.3A - 6EP3331-6SB00-0AY0

Signal Beacon with Built-in LED Red AC/DC 24V 8WD4420-5BB

• product brand name: SIRIUS
• product designation: Repeated-flash light element
• design of the optical signal: blinklight
• type of voltage of the operating voltage: AC/DC
• operating voltage:
  ● 1 at DC rated value 24 V
  ● 1 at AC at 50 Hz rated value 24 V
  ● 1 at AC at 60 Hz rated value 24 V
• relative positive tolerance of the operating voltage: 10 %
• relative negative tolerance of the operating voltage: -10 %
• consumed current maximum: 30 mA
• service life of LED: 100 000 h
• material: PC
• color: red
• fastening method: Bayonet
• reference code:
  ● acc. to DIN EN 61346-2 P
  ● acc. to IEC 81346-2 P
• outer diameter of the signal column element: 70 mm
• product component light source: Yes
• type of light source: LED
• flashing frequency: 1 Hz
• light intensity: 0.79 cd
• light intensity: 0.53 ... 1.41 cd
