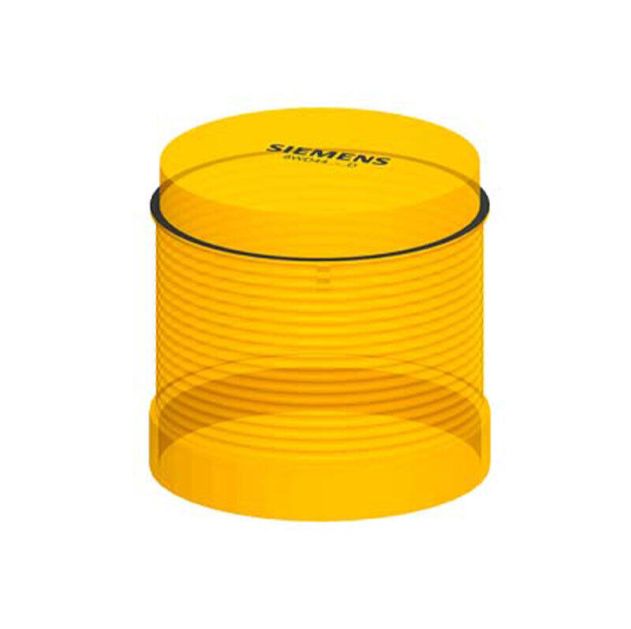

Signaling Column 12-240V AC-DC 70mm Yellow 8WD4400-1AD

Binary Output 4X230V/6A 5WG1561-1AB01
Characteristics:

Power supply: via bus line
Outputs: number: 4 outputs (volt free contacts)
rated voltage: AC 230 V, 47 ... 63 Hz
rated current: 10 A resistive load
switching current at AC 230 V:
0,01 ... 10 A resistive load
switching current at DC 24 V:
- 10 A resistive load
-   4 A inductive load (L/R = 7 ms)
switching characteristic: set in parameter list accord-
ing to application program
Switching power at AC 230 V
at incandescent lamp load: max. 1000 W
at fluorescent lamp (FL) load:
- uncorrected FL, cos = 0,5: max. 500 W
- parallel corrected FL, cos = 1 (at Ctot <= 14 μF):
2 x 58 W or 3 x 36 W or 6 x 18 W
- twin-lamp circuit, cos = 1: max. 1000 W
- OSRAM ECG for 58 W FL: max. 10 units
- OSRAM ECG for 36 W FL : max. 15 units
- OSRAM ECG for 18 W FL : max. 20 units
Control elements
1 learning button:
for switching between normal operating mode and
addressing mode
Display elements
1 red LED:
for monitoring bus voltage and displaying mode,
selected with the learning button
Connections
load circuit, physical:
strip insulation for 9 ... 10 mm
permissible conductor types/cross sections:
- 0,5 ... 2,5 mm≤ single core or flexible conductor,
8 mm ultrasonically compacted
- 0,5 ... 2,5 mm≤ flexible conductor with terminal pin,
crimped on gas tight
- 0,5 ... 1,5 mm≤ flexible conductor with connector
sleeve
- 1,0 and 1,5 mm≤ plain flexible conductor
  load circuit, electrical:
- plain flexible conductor, min. 1 mm≤:
current carrying capacity max. 6 A
- all other conductors, min. 1,5 mm≤:
current carrying capacity max 10 A
- the load circuits must be protected with a 10 A
circuit breaker A or B characteristic
 bus line, pressure contacts on data rail
Physical specifications:
housing: plastic
N-system DIN-rail mounted device,
width 3 SUs (1SU = 18mm)
weight: approx. 220 g
fire load: approx. 3450 kJ 10 %
installation: rapid mounting on
DIN rail EN 60715-TH35-7,5
Electrical safety:
Degree of pollution (according to IEC 60664-1): protection (according to EN 60529): IP 20 overvoltage class (according to IEC 60664-1): III bus: safety extra low voltage SELV DC 24 V relay with μ-contact the device complies with
EN 50090-2-2 and EN 60669-2-1
Reliability:
rate of failure: 709 fit at 40C
Electromagnetic compatibility
complies with
EN 50081-1, EN 50082-2 and EN 50090-2-2
Environmental specifications
  climatic conditions: EN 50090-2-2
  ambient temperature operating: - 5 ... + 45 C
  ambient temperature non-op.: - 25 ... + 70 C
  relative humidity (non-condensing): 5 % to 93 %
