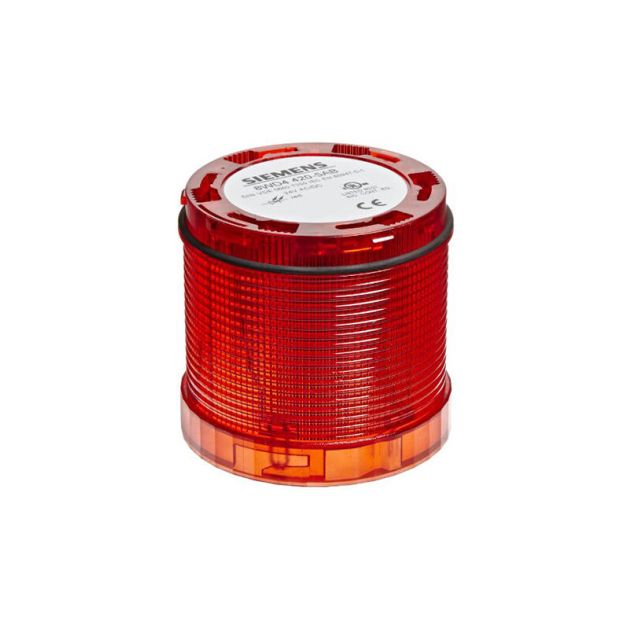

Fixed Beacon With LED 24V AC / DC Red 8WD4420-5AB

Aluminum Frame For The Screen Up 588/11/21 5WG1588-8AB01
Characteristics:

Power supply:
•  Bus voltage: via the bus line
•  External power supply
• Touch-Panel UP 588 and Touch-Panel UP 588/11
230 V AC ±10%, 50/60 Hz
•  Touch-Panel UP 588/21
12 - 36V DC, 120mA
10 - 28V AC, 50/60 Hz, 120mA
Operating elements:
•  Learning button for toggling between
normal/addressing mode
•  Resistive matrix with 6 x 10 fields
(touch-sensitive display)
Display elements:
•  Red programming LED for displaying
normal/addressing mode
•  320 x 240 pixel display with graphic capability and
backlighting
Connections:
• Bus line: EIB bus terminal, screwless
0.6 ... 0.8mm ∅ solid
insulation strip length 5mm
•  Power supply
Insulation strip length: 6...7mm
The following conductors/conductor cross-sections
are permitted:
-  0.5...2.5mm2 solid
-  0.5...1.5mm2 finely-stranded
Mechanical data:
•  Housing: plastic
•  Dimensions (WxHxD): 190 x 156 x 58mm
•  Mounting depth in flush-type box: 52mm
•  Installation: screwed into the relevant flush-type box
•  Dimensions of relevant flush-type box (WxHxD):
164 x 138 x 65 mm, included with supply
•  Weight:  approx. 350 g
Electrical safety:
•  Degree of pollution: 2
•  Type of protection (according to EN 60529): IP 20
•  Overvoltage category: III
•  Bus: safety extra-low voltage SELV DC 24 V
•  Device complies with EN50090-2-2
EMC requirements: Complies with EN 61000-6-1 and EN 61000-6-2
Ambient conditions:
•  Climatic withstand capability: EN 50090-2-2
•  Ambient operating conditions: 0∞C to +45∞C
•  Storage temperature: -25∞C to +70∞C
•  Relative humidity (not condensing): 5 % to 93 %
Markings: KNX/EIB
